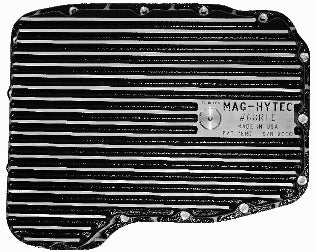

Mag-Hytech 2007.5 and up 6.7l Cummins 68RFE Pan

Overall Height @ deepest Side 4 5/8″

2007.5 and up Dodge trucks with 6.7L Diesel

This Pan will also work on #45RFE / 545RFE if there is no cross over exhaust pipe or the cross member interferes. Also this can be used if exhaust is relocated or changed to dual exhaust.

3 to 4 Quarts more than stock

*Gasket Seal, with o-ring sealed magnetic Drain Plug.

Includes: Bolt kit, and Drain Plug.

Service Bulletin #68RFE 07/28/16 Attention: Instructions mistake Tightening instructions for #68RFE transmission pans: s/n 0000 to s/n 350 could have Incorrect Torque Specs! These specs are for the pan mounting bolts. The correct torque specs are (105 in lbs) or 7-9 ft lbs. The WRONG Specs. call for 12-16 ft lbs. This is in two places and is wrong in both places. Please take note and tighten with caution: Do Not Over Tighten. Failure to take note will result in stripping bolt threads in the transmission case.

2007.5 and up 6.7L Diesel 6 speed Will work on 45RFE / 545RFE if no cross over pipe or Cross member in the way 3 qts more than stock Bolt sizes 6 - 25 mm
